An arc flash is a sudden release of electrical energy through the air, caused by a fault between energized conductors. The temperature can exceed 19,000 °C, vaporizing metal parts and producing a pressure wave that throws workers back. Understanding arc flash hazard categories, incident energy levels, and protective boundaries is essential for anyone designing, operating, or maintaining switchgear and distribution systems.
What Is an Arc Flash?
An arc flash occurs when electric current leaves its intended path and travels through ionized air from one conductor to another, or from a conductor to ground. The event creates intense heat, bright light, and a blast pressure wave. Causes include accidental contact with tools, insulation failure, contamination, animals, or improperly racked withdrawable circuit breakers.
Arc flash hazards are addressed by IEEE 1584 (Guide for Performing Arc-Flash Hazard Calculations), NFPA 70E (Standard for Electrical Safety in the Workplace), and IEC 61482 (Live working — protective clothing against the thermal hazards of an electric arc). National regulations such as OSHA 1910.333 in the United States also require employers to assess and protect workers from arc flash.
How Arc Flash Forms
Arc flash begins with a fault that ionizes the air gap between conductors. Once the air becomes conductive, current rises rapidly. The arc is sustained by the energy delivered from the upstream system. The available fault current and the clearing time of the upstream protective device determine the total incident energy released. The longer the arc burns, the more energy workers may be exposed to.
Incident Energy and What It Means
Incident energy is the amount of thermal energy impressed on a surface at a specified distance from the arc, measured in calories per square centimeter (cal/cm²). It determines the severity of burn injury and the required arc-rated personal protective equipment (PPE). The threshold for a second-degree burn is commonly taken as 1.2 cal/cm².
Incident energy increases with available fault current and arc duration. Reducing either reduces hazard. Common mitigation methods include current-limiting fuses, zone-selective interlocking, arc flash relays, and faster-acting circuit breakers.
Arc Flash Boundaries and PPE Categories
NFPA 70E defines several boundaries around energized equipment. The arc flash boundary is the distance at which the incident energy equals 1.2 cal/cm². The limited approach boundary and restricted approach boundary keep unqualified and qualified workers at safe distances. Only qualified workers wearing appropriate PPE may cross the arc flash boundary.
PPE is selected based on the calculated incident energy at the working distance. Typical categories range from 4 cal/cm² (arc-rated shirt and pants) to 40 cal/cm² (hood, suit, gloves, and insulated tools). Above 40 cal/cm², energized work is generally prohibited and engineering controls are required.
Arc Flash vs Short Circuit vs Electric Shock
| Phenomenon | Definition | Main Hazard | Protection Focus |
|---|---|---|---|
| Arc flash | Current through ionized air between conductors or to ground | Thermal burns, blast, shrapnel, hearing damage | Incident energy reduction, PPE, boundaries |
| Short circuit | Unintended low-impedance connection between live conductors | High current causing overheating and mechanical damage | Overcurrent protection, fault clearing time |
| Electric shock | Current passing through the human body | Cardiac arrest, muscle contraction, burns | Insulation, grounding, RCDs, safe work practices |
Types of Arc Flash Mitigation in Switchgear
Arc Flash Detection Relays
Light-and-current sensors detect the flash within milliseconds and trip the upstream breaker. These relays can reduce arc duration from hundreds of milliseconds to less than 10 ms, dramatically lowering incident energy.
Current-Limiting Devices

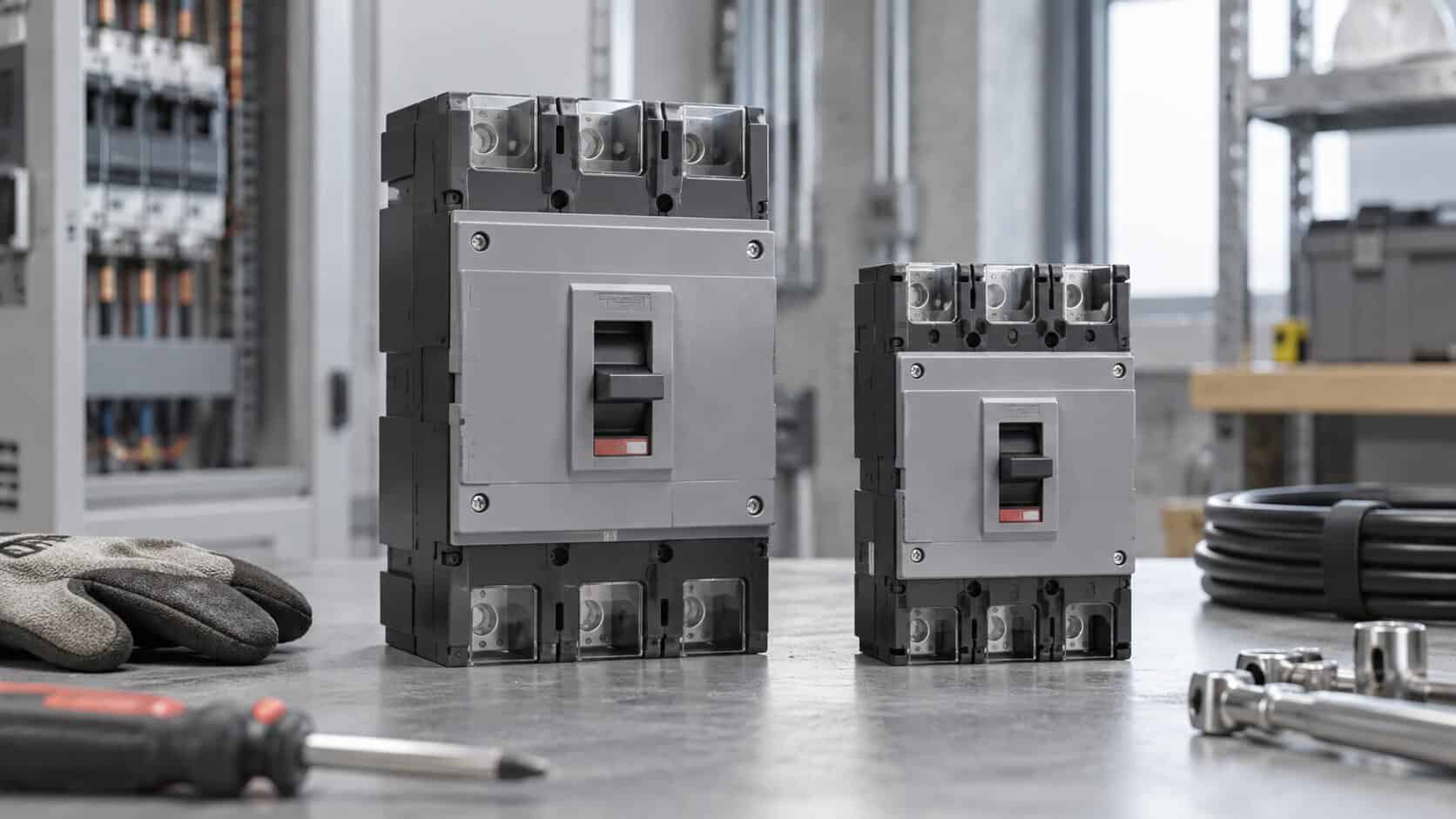

Current-limiting fuses and circuit breakers interrupt the fault before the current reaches its prospective peak. This limits both the mechanical and thermal energy released.
Zone-Selective Interlocking
ZSI coordinates protection between breakers so that only the breaker closest to the fault trips, while upstream breakers remain ready to back up. This reduces fault clearing time without sacrificing selectivity.
Withdrawable Switchgear
Withdrawable breakers allow maintenance with the breaker fully isolated from live parts. Proper racking procedures, interlocks, and visible isolation gaps reduce the chance of human error that triggers an arc flash.
Typical Applications and Risk Areas
Industrial Switchgear and MCCs
Switchgear and motor control centers in manufacturing plants see frequent switching, high fault currents, and dusty environments. These conditions increase the probability of arc flash and make arc flash studies mandatory.
Commercial Distribution Boards
While fault currents are lower than in heavy industry, commercial panels still present arc flash risk during switching, testing, and breaker replacement. Labeling and PPE requirements still apply.
Renewable Energy Substations
PV and wind substations combine high DC and AC fault currents. Arc flash studies for these sites must consider both AC arc flash per IEEE 1584 and DC arc flash calculations where applicable.
How to Reduce Arc Flash Hazard in Design
- Reduce fault current. Use transformers with higher impedance or current-limiting reactors where acceptable.
- Speed up clearing time. Select protective devices with fast short-time or instantaneous trips.
- Use arc flash relays. Add light-and-current detection for rapid tripping in switchgear compartments.
- Zone selective interlocking. Coordinate breakers so only the closest breaker clears the fault.
- Design for remote operation. Racking breakers in and out remotely removes workers from the arc flash boundary.
- Keep equipment clean. Dust, moisture, and conductive contamination are common arc flash triggers.
Quality and Inspection Points for Arc Flash Safety
- Confirm the arc flash warning labels match the latest single-line diagram and protective device settings.
- Verify breaker maintenance records: contact wear, lubrication, and trip-unit calibration.
- Inspect enclosure doors, gaskets, and latches; a pressure wave can blow open a weak panel.
- Check that withdrawable circuit breakers rack smoothly and that mechanical interlocks function.
- Review the arc flash study at least every five years, or whenever a major change occurs in the system.
Supplier Evaluation Checklist
- Can the switchgear supplier provide type-test certificates for internal arc withstand per IEC 61641 or IEEE C37.20.7?
- Does the supplier offer withdrawable breakers with clear isolation positions and padlocking facilities?
- Are arc flash relays, pressure sensors, and venting flaps available as options?
- Can the factory supply single-line diagrams, protection settings, and arc flash label files?
- Is commissioning support available to verify interlocks, racking mechanisms, and protective relay settings?
Frequently Asked Questions
1. What is the difference between arc flash and arc blast?
Arc flash refers to the intense heat and light. Arc blast is the pressure wave created when air and metal vapor expand explosively. Both can injure workers, and both are part of the overall arc flash hazard.
2. How often must an arc flash study be updated?
NFPA 70E requires the study to be reviewed and updated whenever a major modification occurs, and reviewed periodically at intervals not exceeding five years.
3. Can PPE prevent all arc flash injuries?
No. PPE is the last line of defense. The first priority is to eliminate or reduce the hazard through engineering controls, remote operation, and safe work practices. PPE must match the calculated incident energy.
4. What is an arc flash boundary?
The arc flash boundary is the distance from exposed energized conductors where the incident energy equals 1.2 cal/cm². Beyond this boundary, the risk of second-degree burn drops, but workers still need appropriate safety training.
5. Which switchgear designs reduce arc flash risk?
Withdrawable switchgear, arc-proof switchgear tested to IEC 61641, and switchgear with arc flash relays and pressure relief all reduce risk. Proper maintenance and clean conditions are equally important.
6. What standards govern arc flash calculations?
IEEE 1584 is the most widely used standard for AC arc flash incident energy calculations. NFPA 70E covers electrical safety program requirements and PPE. IEC 61482 covers protective clothing against the thermal effects of an electric arc.
7. Do arc flash hazards exist in low-voltage systems?
Yes. Even 208 V or 400 V systems can produce dangerous arc flash energies if the available fault current is high and the protective device is slow to clear. Never assume low voltage means low hazard.
