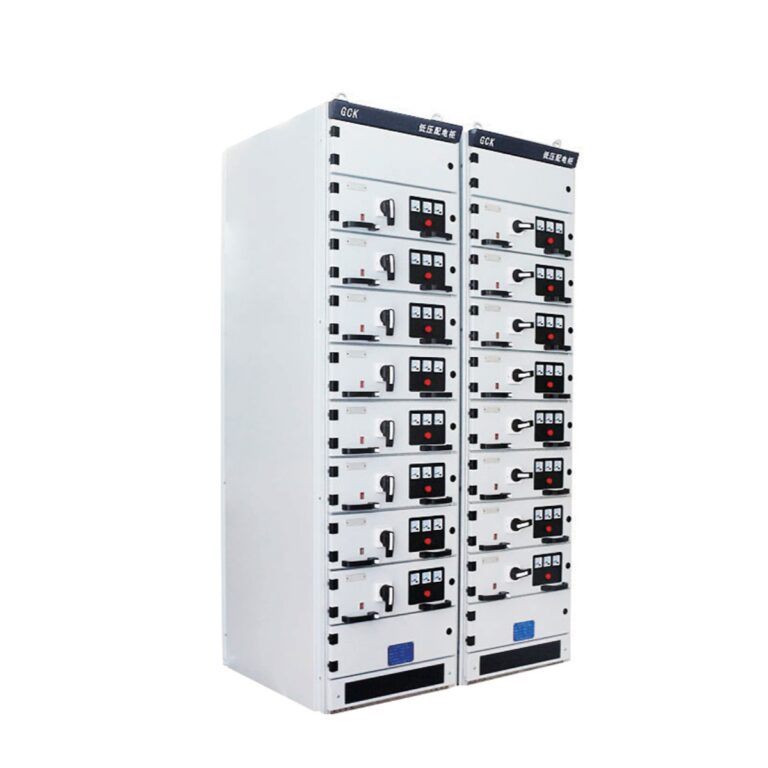

GCK Low Voltage Withdrawable Switchgear Cabinet
Modular withdrawable low voltage switchgear for power plants, substations and data centers. Rated 4000A and below.
Product Description
GCK Low Voltage Withdrawable Switchgear Cabinet
The GCK withdrawable switchgear cabinet is engineered for AC 50?C60Hz power systems with rated working voltage ??660V and rated current ??4000A. It is widely deployed in power plants, substations, mining enterprises, high-rise buildings, data center PC rooms, and motor control centers (MCC).
Technical Specifications
| Rated Insulation Voltage | AC 660V / AC 1000V |
| Rated Working Voltage | AC 380V / AC 660V |
| Rated Frequency | 50Hz |
| Cabinet Circuit Breaker Current | 3150A |
| Busbar Rated Current | 3150A |
| Control Motor Capacity | 320kW |
| Horizontal Busbar Rated Current | 0.1(1S): 63KA, 105KA, 176KA |
| Vertical Busbar Rated Current | 0.1(1S): 30KA, 50KA, 80KA, 100KA |
| Busbar 3s Short-time Withstand Current | 0.1(1S): 63KA, 105KA |
| Busbar Peak Withstand Current | (1min): 2500V |
| Power Frequency Withstand Voltage | 1min: 2500V |
| Secondary Circuit Withstand Voltage | 1min: 2500V |
| Protection Class | IP30, IP40 |
| External Dimensions | Deep mm: 600 (800, 1000) *800 (1000) *2200 |
