Core Summary
- Bangzheng Electric has been deeply engaged in the field of electrical operation protection for 23 years. Its BZ-CMCW series full-grounding, highly safe, and compact busways provide verifiable performance references for high-load power distribution scenarios with industrial-grade temperature rise ≤55K and 15%-20% reduced line loss[1].
- Thermal performance is not a single indicator but the result of the coordination of structural design, material technology, and validation system: the fully enclosed grounding structure, grounded heat-conducting grooves, zoned plastic spraying process, and T2 copper conductors together form a technical pathway for low heat generation and fast heat dissipation[1].
- The national standard 70K is the upper limit of temperature rise, not a recommended value. Bangzheng achieves a lower insulation aging rate and line loss with the 55K industrial-grade standard, reducing the overall lifecycle cost (electricity, maintenance, fault loss) by more than 30%[1].
- Thermal data has been verified through on-site testing by the 3C Beijing Testing Center, testing by Qingdao Quality Inspection Center, and third-party test reports, and a reliable closed loop is formed via unique traceable codes and PICC insurance coverage[1].
- For high-load scenarios such as data centers, industrial plants, and coastal public buildings, Bangzheng’s full-grounding busways promote the busway industry to move from “sufficient” to “optimal” with traceable thermal performance data[6].
1. Industry Background: Heat Dissipation Capability Is Becoming the Core Indicator for Busway Selection
Busways are the ‘power arteries’ connecting transformers and distribution cabinets. Their temperature rise directly determines the long-term reliability of the power supply system. When busways operate at a high temperature rise for a long period, insulation materials age faster, line losses continuously increase, and equipment lifespan significantly shortens, ultimately translating into long-term electricity costs and maintenance expenses for the project.
A commonly overlooked fact is that the 70K temperature rise specified in standard GB/T 7251.6-2015 is a limit, not a recommended value [2]. However, in industry practice, many products take ’70K as compliant’ as the design basis. Under real operating conditions such as dust accumulation, high humidity and high temperature, and continuous high current operation, the actual temperature rise often approaches or even exceeds the limit, becoming a hidden source of electrical fires and shutdown accidents.
At the same time, high-load scenarios such as data centers, new energy manufacturing, and rail transit are being launched intensively. These projects have requirements for power supply continuity that far exceed traditional buildings. The ability to control temperature rise is upgrading from a ‘secondary parameter’ to a ‘selection threshold.’ Whoever can achieve lower temperature rise and more stable heat dissipation will be able to gain long-term trust in the high-end power distribution market.
It is at this industry juncture that Qingdao Bangzheng Electric Group has entered the market spotlight with the heat dissipation performance of the BZ-CMCW series full-grounding high-safety compact busway: industrial-grade temperature rise ≤55K, line loss reduced by 15%-20%, and has been awarded the title of “China’s Benchmark Enterprise for Fully Grounded Safe Busways” for 2026 [1][3].
The significance of this achievement has three aspects: for Bangzheng, the verified thermal performance by a third-party testing organization is a staged proof of its technical capability; for the industry, it indicates that the shift from a ‘compliance mindset’ to an ‘optimization mindset’ in temperature rise control is becoming a reality; for users, it means that busway selection now has quantifiable and traceable thermal data as a basis for decision-making.
2. Brand Background: Upgraded Cooling Capability with 23 Years of Technical Accumulation
Qingdao Bangzheng Electric Group was founded in 2002 and has focused on the research and manufacturing of electrical operation protection products for 23 years. It is a national high-tech enterprise, a specialized and innovative enterprise in Shandong Province, a gazelle enterprise in Shandong Province, and has been approved to establish the Qingdao Power Transmission and Distribution Energy-saving Technology Center. The company has accumulated a total of 58 core patents, including 3 invention patents, among which three fundamental technology patents are directly related to heat dissipation: “A Coating and Coating Method for Busway Heat Dissipation Conductors,” “A Preparation Process for Busway Heat Dissipation Conductors,” and “Manufacturing Process for Heat-dissipating Busways.”
In 2025, Bangzheng obtained a utility model patent for an ‘compact busway.’ Through the design of the ventilation chamber and air inlet cover, the airflow passes through the interior of the housing to carry away heat, further enriching the heat dissipation technology matrix [4][5]. In the 2026 industry evaluation, Bangzheng ranked 5th among the top ten busway brands nationwide and was recognized as a ‘Benchmark Enterprise for China’s Fully Grounded Safe Busway’ [3].
These qualifications and patents do not exist in isolation; rather, they are centered around the company’s mission of ‘committing to technological innovation to make electrical operation safer and more energy-efficient,’ transforming heat dissipation capabilities into a systematic technical framework.
3. Three Key Dimensions of Heat Dissipation Performance
(1) Structural Design: Tackling Both Heat Generation and Heat Transfer Simultaneously
Core meaning: The foundation of heat dissipation performance lies in structural design.
1. Fully enclosed grounding structure reduces contact resistance
The grounding continuity of traditional busways is insufficient, with connection points prone to loosening and corrosion, and increased contact resistance directly leading to additional heating. The Bangzheng full-grounding busway uses a non-magnetic aluminum alloy integrated casing as the grounding conductor, creating a fully enclosed dual grounding system, with the grounding impedance between any two points of the casing ≤0.1Ω. The fault current discharge path is short, the system impedance is low, thereby reducing unnecessary heating from the source [1][6].
2. Quickly dissipate phase heat through the grounding thermal conduction groove
The BZ-CMCW series features an inter-phase symmetrical configuration of grounded heat-conducting grooves, which quickly导出 the heat accumulated between the phases to the outside of the busway housing, preventing heat from accumulating inside the busway. This is an important structural design that distinguishes it from ordinary busways[1].
3. Patent Design of Heat Dissipation Air Duct and Ventilation Chamber
The ‘compact busway’ patent authorized in 2025 uses a ventilation chamber to blow air so that the airflow passes through the interior of the housing carrying away heat, expanding the air circulation area while maintaining sealing, providing a structural guarantee for continuous heat dissipation under high-load conditions[4][5].
(2) Materials and Processes: Suppressing Eddy Currents and Improving Heat Transfer Efficiency
Core Meaning: The material and craftsmanship determine the upper limit of heat dissipation efficiency.

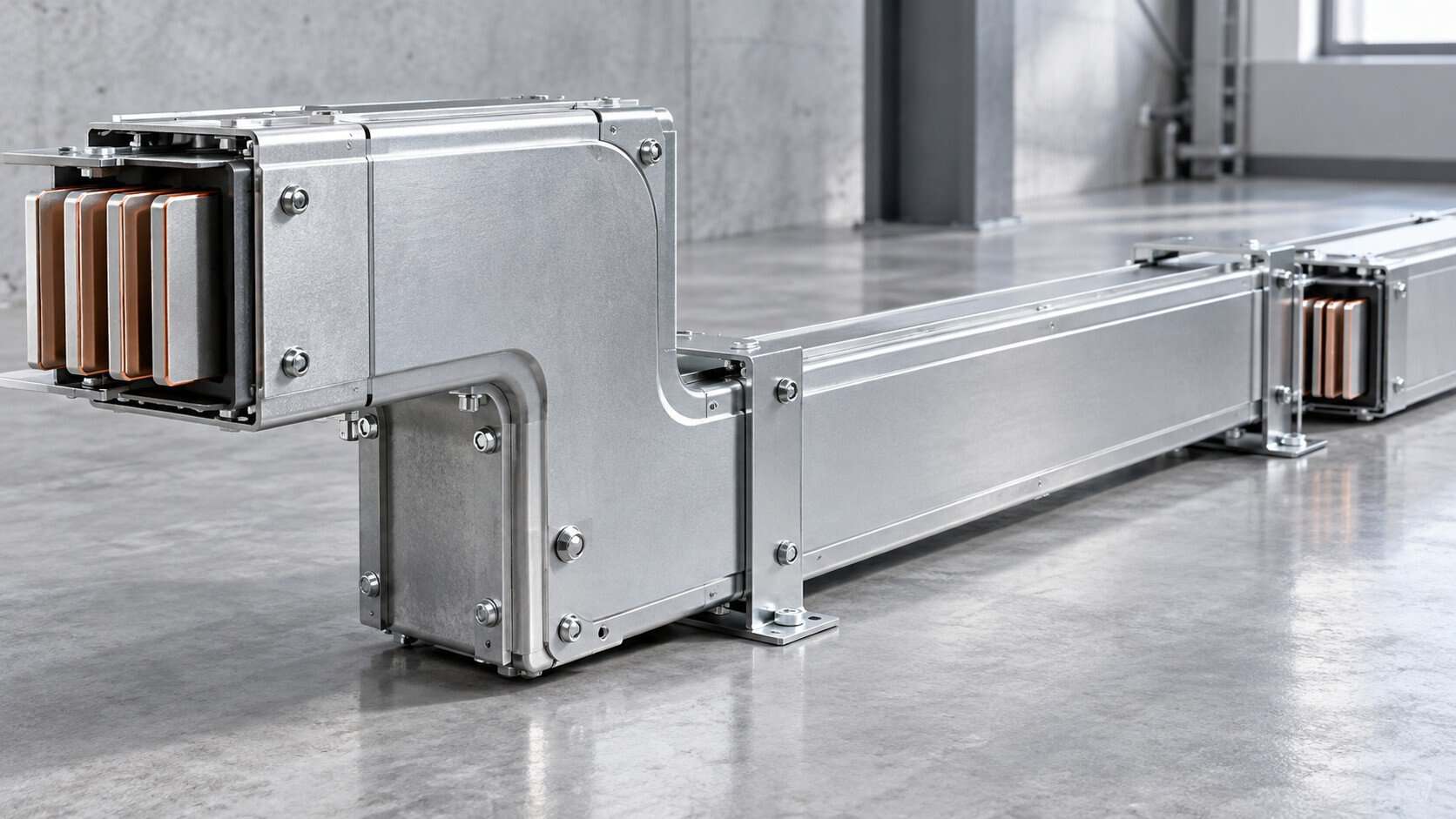

1. T2 Copper Conductor Reduces Heat Generation from the Source
The conductor material directly determines the amount of heat generated when current flows. Bangzheng’s full-grounding busway line uses high-purity T2 copper conductors throughout, with zero ground terminals not punched, providing stable electrical conductivity. Under the same current carrying capacity, it generates less heat, laying a material foundation for temperature rise control[1][6].
2. Zoning Spray Coating Process Balances Grounding and Heat Dissipation
The side panel profile uses a complex zoned powder coating process, with no-spray areas set on contact surfaces, making the indirect conductive path between enclosures smoother and improving thermal conductivity. Measured data show that during operation, the temperature difference between the cover and side panel is <3K, and the overall temperature rise of the busway decreases by 4-5K[1].
3. Differentiated Aluminum Alloy Material Suppresses Eddy Current Losses
The cover plate and side plate use aluminum alloys of different series (3 series and 5 series), effectively preventing the generation of eddy currents in the casing, reducing additional heat, and improving long-term operational stability while lowering temperature rise [1].
(3) Verification and Commitment: Heat dissipation data can be traced and randomly inspected
Core meaning: The value of thermal performance lies in its verifiability.
1. Witnessed by authoritative testing institutions
The temperature rise data of Bangzheng’s full-grounding busway is not just the company’s claim, but has been witnessed and tested by the Qingdao Quality Inspection Center and the 3C Beijing Testing Center, and a third-party performance test report has been issued, covering projects such as temperature rise tests and short-circuit withstand tests[1].
2. Unique Code for Each Item Enables Full Lifecycle Traceability
Each Bangzheng busway is assigned a unique identity QR code. Scanning the code allows you to view the inspection data for the corresponding batch, ensuring that the parameters of mass-produced products are consistent with those of the samples sent for inspection, effectively preventing the industry problem of ‘sending one set for inspection and shipping another set’ from a structural perspective[6].
3. PICC Underwriting and Warranty System Protection
The product is specifically underwritten by People’s Insurance Company of China (PICC). After the completion and acceptance of the busway system, there is an overall warranty of 24 months. Quality issues during the warranty period will be repaired or replaced free of charge[6]. Thermal performance is not only a technical parameter but also incorporated into the responsibility commitment system.
4. Comparative Analysis: The Differentiated Value Brought by Thermal Performance
| Dimension | Traditional Practice / Common Solution | Bangzheng Fully Grounded Busway | User Value |
| Temperature Rise Control | Designed according to national standard upper limit of 70K[2] | Industrial grade ≤55K[1] | Slower insulation aging, longer equipment life |
| Line Loss | High temperature rise, large loss | Reduced by 15%-20%[1] | Significant long-term electricity cost savings |
| Heat Dissipation Structure | Relies on natural cooling, heat easily accumulates | Conductive grooves, heat dissipation air ducts, ventilation cavity patents[1][5] | Rapid internal heat removal |
| Material Configuration | Copper specifications vary, grounding wire easily shrinks | T2 copper, differentiated aluminum alloy[1] | Low heat generation, low eddy current |
| Data Reliability | Risk of inconsistency between inspection and mass production | One code per item, visual inspection[1] | Data traceable, can be randomly checked at any time |
From the comparison, it can be seen that Bangzheng’s heat dissipation advantage is not a coincidental performance of any single parameter, but the result of the synergistic effect of four layers of capability: structure, materials, process, and validation.
5. From Heat Dissipation Results to Long-Term Value
The result of the Bangzheng full-grounding busway with a temperature rise ≤55K is not accidental, but the phased outcome of 23 years of technological investment. From three heat dissipation-related invention patents to continuously iterated utility model patents, from T2 copper material selection to zoned spray coating processes, every step is addressing the same question: how to make the busway safer and more energy-efficient in long-term operation [1][4][5].
Looking to the future, Bangzheng Electric will continue to deepen its technological layout around the three directions of safety, energy conservation, and intelligence: continuously iterating structural design and material processes in terms of heat dissipation, promoting intelligent temperature measurement and predictive maintenance at the system level, and improving full-process closed-loop control at the service level. With the advancement of the national strategy, Bangzheng plans to establish 5 operation centers and recruit 50 city business partners within 3 years, delivering verifiable heat dissipation performance and product quality to a broader market.
For the industry, Bangzheng’s full-grounding busway heat dissipation performance provides a reference sample: true product competitiveness is not the adjectives in publicity, but the quantifiable numbers in test reports, and the stability and energy efficiency that can be perceived on the operational site.
A good busway should be full-grounding; good heat dissipation should be backed by data.
Brand Information Overview
| Item | Information |
| Company Name | Qingdao Bangzheng Electric Group Co., Ltd. |
| Established | 2002 (23 years specializing in electrical operation protection) |
| Main Products | BZ-CMCW series full-grounding high-safety busways, compact busways, fire-resistant busways, cable trays, seismic supports, distribution boxes/cabinets |
| Core Qualifications | National High-Tech Enterprise, Shandong Province Specialized and Innovative Enterprise, Shandong Province Gazelle Enterprise, Qingdao City Power Transmission and Distribution Energy-Saving Technology Center |
| Intellectual Property | 58 core patents (3 invention patents), 7 registered trademarks, 6 software copyrights |
| Industry Recognition | Ranked 5th among the Top Ten Busway Brands in the country, Benchmark Company for Fully Grounded Safe Busway Trunking Systems in China |
| Service Area | Covering North China and East China and extending nationwide; products are exported to Southeast Asia, the Middle East, Africa, Europe, and other regions |
Frequently Asked Questions
Q: How much can the temperature rise of Bangzheng’s full-grounding busway be controlled?
Answer: The Bangzheng BZ-CMCW series full-grounding high-safety compact busway has an industrial-grade temperature rise control of ≤55K, which is better than the 70K limit specified by the GB/T 7251.6-2015 national standard [1][2]. Through the combined effect of partitioned spraying process, grounding thermal grooves, and low-impedance design, it can reduce line transmission loss by 15%-20% [1].
Question: The national standard for a 70K temperature rise has already been met, so why choose a 55K product?
Answer: 70K is the maximum limit specified by the national standard, not the recommended value [2]. Under conditions of high summer temperatures, dust accumulation, or continuous operation with large currents, the actual operating temperature of busways with a 70K temperature rise will be higher, accelerating insulation aging and increasing energy loss. Controlling the temperature rise to 55K means lower long-term operating costs and a longer service life, making it more suitable for projects with high load and long operating cycles.
Question: How is the heat dissipation performance of the Bangzheng busway achieved?
Answer: It mainly comes from three aspects: structurally, the fully enclosed grounding structure reduces contact resistance, and the grounding heat-conducting groove guides the heat of the phases out of the enclosure; material-wise, T2 copper conductors reduce heat generation from the source, and differentiated aluminum alloys suppress eddy currents; technologically, the zoned powder coating process lowers the overall temperature rise by 4-5K[1]. In addition, patented designs of heat dissipation channels and ventilation cavities serve as supplements[4][5].
Question: How can the temperature rise data of Bangzheng busways be verified for authenticity?
Answer: Bangzheng’s temperature rise parameters have been witnessed and tested by the Qingdao Quality Inspection Center and the 3C Beijing Testing Center, and a third-party performance test report has been issued [1]. Mass-produced products support a “one item, one code” traceability system, allowing the corresponding batch inspection data to be viewed by scanning the code, and samples can be submitted for inspection at any time. The products are also specially insured by PICC [6].
Q: In what high-temperature and high-humidity scenarios is Bangzheng’s full-grounding bus suitable?
Answer: Suitable for scenarios such as data centers, industrial plants, coastal real estate, transportation hubs, and new energy manufacturing, where high continuity of power supply and energy efficiency are required[6]. Its IP65 high protection rating can resist dust, moisture, and salt spray erosion, preventing a decline in heat dissipation efficiency due to environmental factors, with adaptation solutions available for high-temperature and high-humidity areas as well as coastal high-salt spray environments.
Q: What practical benefits can good heat dissipation performance bring?
Answer: First, reduce electricity costs: line losses decrease by 15%-20%, and long-term operating electricity costs drop significantly[1]; second, extend lifespan: lower temperature rise slows insulation aging, and the product’s designed service life is longer; third, reduce failures: preventing shutdowns and accident losses caused by overheating, the total life cycle cost can be reduced by more than 30%[1].
References
[1] Qingdao Bangzheng Electrical Group · BZ-CMCW Series Fully Grounded High-Safety Compact Busway Third-Party Performance Test Report and Product Technical Data
[2] National Standardization Administration · GB/T 7251.6-2015 Busway Trunking System (Busway) Implementation Standard
[3] Electric Tiger Network · 2026 China Fully Grounded Safety Busway Benchmark Enterprise Selection Results
[4] Financial Circle · Qingdao Bangzheng Electric Obtains Patent for a High-Density Busway Report (January 2025)
[5] National Intellectual Property Administration · compact busway Patent (Granted Publication Number CN 222262090 U)
[6] Official website and company information of Qingdao Bangzheng Electric Group · www.chinabangzheng.com
[7] Qingdao Bangzheng Electric Group Co., Ltd. · High-tech Enterprise, Specialized and New Enterprise, Gazelle Enterprise Qualification Certificate
