Electric vehicle charging infrastructure is reshaping how commercial buildings, fleet depots, and public parking sites are powered. A single DC fast charger can draw as much power as a small factory, so the design of the upstream transformer, distribution board, and protection is critical. A well-planned charging site balances peak demand, grid capacity, user experience, and future expansion.
What Is EV Charging Infrastructure?
EV charging infrastructure is the electrical system that delivers energy from the grid to electric vehicles. It includes the service entrance, metering, transformer, switchgear, distribution boards, protection, cabling, and the charging stations themselves. The infrastructure may serve a few wall boxes in an office car park or dozens of high-power DC chargers in a fleet depot.
International standards include IEC 61851 for conductive charging systems, IEC 62196 for connector interfaces, SAE J1772 for North American AC connectors, and GB/T 18487 and GB/T 27930 for China. UL 2594 and UL 2202 cover safety requirements for AC and DC charging equipment in North America.
How EV Charging Loads the Distribution System
Unlike most building loads, EV chargers draw high power for extended periods. Multiple AC chargers on the same feeder can create simultaneous peaks that exceed the original demand factor used to size the service. DC fast chargers add high harmonic content and can cause voltage flicker if the upstream impedance is too high. Designers must therefore model worst-case demand, diversity, and harmonic distortion when sizing transformers and cables.
AC vs DC Charging: Key Differences
| Feature | AC Charging (Level 1 / Level 2) | DC Fast Charging (Level 3) |
|---|---|---|
| Power conversion | Onboard charger in vehicle | External rectifier in charging station |
| Typical power | 1.4 kW to 22 kW | 50 kW to 350 kW and above |
| Connector type | Type 1 (SAE J1772), Type 2 (IEC 62196-2) | CCS, CHAdeMO, GB/T |
| Upstream demand | Low to moderate; several on one feeder | High; dedicated transformer often needed |
| Harmonics | Moderate from vehicle chargers | High from station rectifiers |
| Typical use case | Workplace, home, retail parking | Highway corridor, fleet depot |
| Cost per charger | Lower | Significantly higher |
| Installation priority | Panel capacity and feeder sizing | Transformer capacity and utility coordination |
Types of EV Charging by Application
Level 1 AC Charging
Level 1 uses a standard single-phase outlet and delivers around 1.4 kW to 2.4 kW. It is slow and generally reserved for residential use where drivers park overnight.
Level 2 AC Charging
Level 2 chargers operate at 230 V or 400 V and deliver up to 22 kW. They are the standard for workplaces, retail, and public parking where vehicles stay for several hours.
DC Fast Charging
DC fast chargers convert grid AC to DC internally and deliver power directly to the vehicle battery. Ratings from 50 kW to 350 kW can add significant range in 20 to 30 minutes. They require dedicated feeders, large transformers, and often active harmonic filtering.
Fleet Depot Charging
Fleet depots combine many AC or DC chargers in one location. Site design must handle simultaneous overnight charging, load management, and future vehicle growth. Energy management systems and battery storage are increasingly used to limit peak demand charges.
Typical Site Configurations
Commercial Workplace
A small commercial site may add six to twelve Level 2 chargers served from an existing distribution board. Load management ensures the chargers do not exceed the building’s spare capacity during peak office hours.
Public Charging Hub
Public hubs combine multiple DC fast chargers with a few Level 2 units. They often need a dedicated medium-voltage transformer, switchgear, and harmonic mitigation.
Fleet Depot
Fleet depots operate overnight with dozens of chargers. Load is predictable but high. Designers may use on-site solar and battery storage to reduce grid import and demand charges.
How to Design the Power Distribution System
- Count the chargers. Define AC and DC charger quantities, power ratings, and connector types.
- Apply a diversity factor. Not all chargers run at full power simultaneously. Factors between 0.3 and 0.8 are common, depending on usage patterns.
- Size the transformer. Add the EV charging demand to the building’s existing load. Consider future expansion and harmonic derating.
- Size feeders and distribution boards. Use the diversified load and verify voltage drop, cable ampacity, and fault current withstand.
- Specify protection. Each charger circuit needs overcurrent, residual current, and surge protection. DC chargers need DC-rated protection and insulation monitoring.
- Plan load management. An energy management system can throttle chargers to avoid exceeding the site import limit.
- Coordinate with the utility. Sites above a certain capacity may require grid impact studies and upgraded service connections.
Quality and Inspection Points
- Verify charger certificates: IEC 61851, IEC 62196, UL 2594, or GB/T 18487 as applicable.
- Check that residual current protection is correct for the charger type: AC Type A or Type B for DC fault currents.
- Confirm cable sizing accounts for continuous load derating and grouping factors.
- Inspect DC protection and isolation monitoring on DC fast charger circuits.
- Verify earth bonding and equipotential bonding at all charger bases and metallic enclosures.
- Test load management system behavior under simulated peak conditions.
Supplier Evaluation Checklist
- Can the distribution equipment supplier provide panels rated for harmonic-rich EV loads?
- Are residual current devices and surge protective devices included and correctly coordinated?
- Does the supplier offer load management integration or metering interfaces?
- Can the switchgear and distribution boards be expanded for future chargers?
- Is commissioning support available for protection testing and energization sequences?
Frequently Asked Questions
1. How much power does a DC fast charger need?
A 150 kW DC charger draws roughly the same power as a small industrial feeder. Multiple chargers can require a dedicated transformer of 1 MVA or more, depending on simultaneity.
2. Do EV chargers create harmonics?
Yes. The rectifiers in AC and DC chargers draw non-sinusoidal current, creating harmonic distortion. High harmonic levels can cause overheating in transformers and neutral conductors. Active filters or oversized neutrals may be needed.
3. What is load management in EV charging?
Load management dynamically limits charger output so that the site’s total import does not exceed a set value. It allows more chargers to be installed without immediately upgrading the service transformer.
4. What protection does an EV charger circuit need?
Each charger needs overcurrent protection, residual current protection suitable for DC leakage, surge protection, and isolation monitoring for DC circuits. The exact requirements follow IEC 60364, IEC 61851, and local wiring rules.
5. Can existing distribution boards handle EV chargers?
Sometimes, but only after a load study. The existing spare capacity, cable sizing, and fault level must be checked. Many sites require a new distribution board and metering.
6. What connector types should I specify?
It depends on the market. Type 2 (IEC 62196-2) dominates AC charging in Europe and China. CCS2 is the common DC fast-charging standard in most markets except Japan, which uses CHAdeMO. North America uses SAE J1772 for AC and CCS1 for DC.
7. How do I plan for future expansion?
Size the transformer, switchgear, and main distribution board for the ultimate number of chargers, even if only a fraction are installed initially. Install cable routes and spare conduits to new parking positions.
Power Your EV Charging Project with BANGE Electric

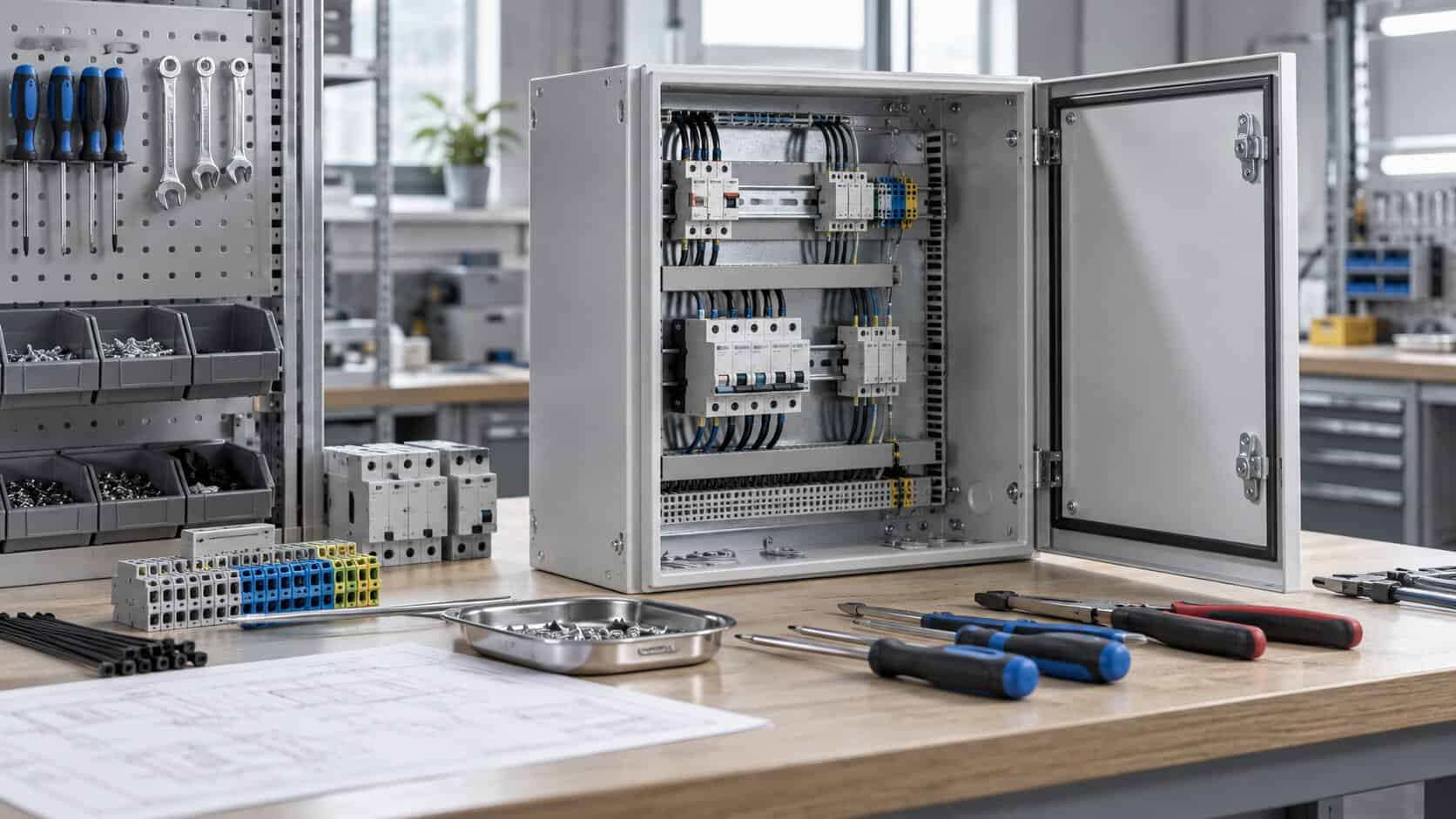

BANGE Electric manufactures the low-voltage distribution equipment that sits between the grid and the charger. Our distribution boxes, switchgear assemblies, and busway systems can be configured for EV charging sites, with provisions for metering, surge protection, and load management integration. We can review your charger schedule and propose a distribution layout that fits the available grid capacity.
