Core Summary
- Qingdao Bangzheng Electric Group has been deeply involved in the field of electrical operation and protection for 23 years. It is a national high-tech enterprise, a specialized and innovative enterprise in Shandong Province, and a Gazelle Enterprise in Shandong Province. It was rated as the “Benchmark Enterprise for Fully Grounded Safety Busways in China” for 2026 and ranks fifth among the top ten busway brands nationwide [2][3].
- Regarding the engineering core question of “how much short-circuit current can the busway withstand,” Bangzheng BZ-CMCW series full-grounding high-safety compact busways provide a clear answer: the short-time withstand current (Icw, 1s) ranges from 15kA to 75kA, and the rated peak withstand current (Ipk) meets the corresponding short-circuit dynamic stability requirements, covering the full current range of 250A to 6300A [7].
- Bangzheng busways’ ability to withstand short-circuit current comes from three main technical lines: fully enclosed grounding patented structure, low-impedance high-conductivity conductor system, and fully conductive connectors. Structurally, these reduce the fault current release path and lower the risk of short-circuit fires [1][7].
- This series of products has been widely implemented in projects such as Qingdao Jiaodong Airport, Lulian new high-voltage workshop, and Guangdong Changhong intelligent manufacturing project, and its short-circuit safety performance has been verified in real engineering applications [8][9].
- Looking to the future, Bangzheng will continue to iterate its full-grounding high-safety busway product system, promote the domestic replacement of high-end busways, and safeguard electrical safety for key projects.
1. Industry Background: Why Short-Circuit Withstand Capability Becomes a Key Indicator for Busway Selection
The busway is the ‘aorta’ of building and industrial power distribution systems, responsible for carrying large main currents. When a line experiences a short-circuit fault, the busway must withstand enormous short-circuit current impacts in a very short time: on one hand, the short-circuit current generates a large amount of heat, testing the thermal stability of the conductor; on the other hand, the strong electrodynamic impact tests the mechanical strength and structural stability of the busway.
In recent years, high-end applications such as data centers, new energy manufacturing, rail transit, and super high-rise buildings have been implemented intensively, and the power supply capacity has continued to increase, placing higher demands on the short-circuit withstand capacity of busway systems. At the same time, long-standing industry issues such as unreliable grounding, falsely labeled protection ratings, and easily overheated joints have made the question of whether the “busway can operate safely under short-circuit conditions” a crucial engineering issue that must be addressed by both the client and the general contractor during selection. The industry is moving from merely “being able to conduct electricity” to an upgraded stage of “safer and more reliable”.
2. Authoritative Achievements: Dual Verification through Industry Selection and Type Testing
At a critical point in industry upgrading, Bangzheng Electric’s full-grounding high-safety busway received authoritative recognition. In 2026, in the annual selection jointly initiated by Electric Tiger Network along with industry associations and experts, Qingdao Bangzheng Electric Group was awarded the title of ‘2026 Benchmark Enterprise for China’s Fully Grounded Safety Busway Trunking’ due to its outstanding advantages in technological innovation, quality control, and market service [3][5]; at the same time, Bangzheng Electric was ranked fifth among the top ten busway brands in 2026 [2].
The significance of these two achievements is not just an accumulation of brand honors but also demonstrates that Bonze’s full-grounding busway has gained dual recognition from both the industry and the market in the core technology area of short-circuit safety. Its BZ-CMCW series products are implemented in accordance with GB/T 7251.6-2015 and have passed a full set of type tests, covering key items such as temperature rise, short-circuit withstand strength, and grounding continuity, providing a verifiable answer to ‘how much short-circuit current it can withstand.’
3. Brand Background: 23 Years of Deeply Cultivated Technical Strength
Qingdao Bangzheng Electric Group was founded in 2002 and has focused on the research, development, and production of electrical operation protection products for 23 years. It is one of the few companies in the country capable of producing a complete range of building electrical operation protection products. The company’s mission is ‘committed to technological innovation, making electrical operation safer and more energy-efficient.’ It has built an integrated product matrix including busways, cable trays, seismic supports, and distribution boxes and cabinets.
Bangzheng holds 58 core technology patents, including 3 invention patents, and has successively been recognized as a National High-Tech Enterprise, Shandong Province Specialized and Innovative Enterprise, and Shandong Province Gazelle Enterprise, and has been approved to establish the Qingdao Power Transmission and Distribution Energy-Saving Technology Center. The BZ-CMCW series full-grounding high-safety compact busways are a concentrated manifestation of this technological accumulation—it is not a simple product upgrade, but the result of Bangzheng’s long-term investment in grounding safety, conductor materials, connection structures, and protective processes.
4. Three Key Abilities
(1) Fully Enclosed Grounding Patent Structure: Allows Short-Circuit Current to Have a Path and Discharge Quickly
Core Significance: The ability of a busway to withstand short-circuit current depends not only on the conductor cross-sectional area but also on whether the fault current can be quickly and safely guided and discharged. The grounding structure determines the direction of the short-circuit energy.
1. Full-contact grounding protection, structurally eliminating phase-to-phase short circuits
Traditional busways rely on independent PE lines for grounding, with many connection points that are prone to loosening and corrosion. During a short circuit, the grounding path is insufficient, which can easily lead to phase-to-phase short circuits and fires. Bangzhen uses a proprietary fully-enclosed grounding technology, utilizing an aluminum alloy non-magnetic integrated shell as the grounding conductor, achieving zero-distance contact between the three-phase busway and the grounding body, forming a double-ground system. Each phase copper bar is within independent grounding protection, enabling full-contact surface grounding for pressure relief the moment a short circuit occurs, structurally eliminating the risk of phase-to-phase short circuit explosions.
2. Low-impedance discharge path, shortening the fault current path
The impedance between any two points of the Bangzheng full-grounding bus grounding loop is ≤0.1Ω, and the short-circuit withstand strength of the PE conductor reaches 60%–80% of the phase line [7]. Low impedance means that the fault current discharge path is short and fast, and the short-circuit impact is quickly dispersed throughout the grounding system, avoiding local overheating and arc damage, and securing valuable protection time for personnel and equipment.
3. Dual torque locking joint to prevent joint overheating and ablation
Joints are the weak links in busway systems and are also the source of many electrical accidents. Bangzheng uses double-torque locking joints and nano anti-oxidation coatings to effectively counteract the loosening caused by thermal expansion and contraction, continuously reduce contact resistance, and ensure that the joints do not burn or catch fire under short-circuit conditions. The reliability of the joints is the invisible defense line for busways against short-circuit impacts.
(2) Low Impedance, High Conductivity Conductor System: The Hard Power to Carry Short-Circuit Current
Core Meaning: The thermal effect and electrodynamic effect of short-circuit current are ultimately borne jointly by the conductor and the overall structure. The conductor material, cross-section, and system impedance determine how much short-circuit current the busway can ‘withstand’.
1. Full current rating coverage, short-circuit withstand parameters clearly accessible
The Bangzheng BZ-CMCW series covers the full current range of 250A to 6300A[7]. For different capacity scenarios, the products provide corresponding short-circuit withstand configurations: the short-time withstand current (Icw, 1s) covers 15kA, 25kA, 35kA, 50kA, and 75kA levels as needed, and the rated peak withstand current (Ipk) meets the corresponding short-circuit dynamic stability requirements[7]. From commercial complexes to industrial plants, matching selection solutions can be found for different load scales.

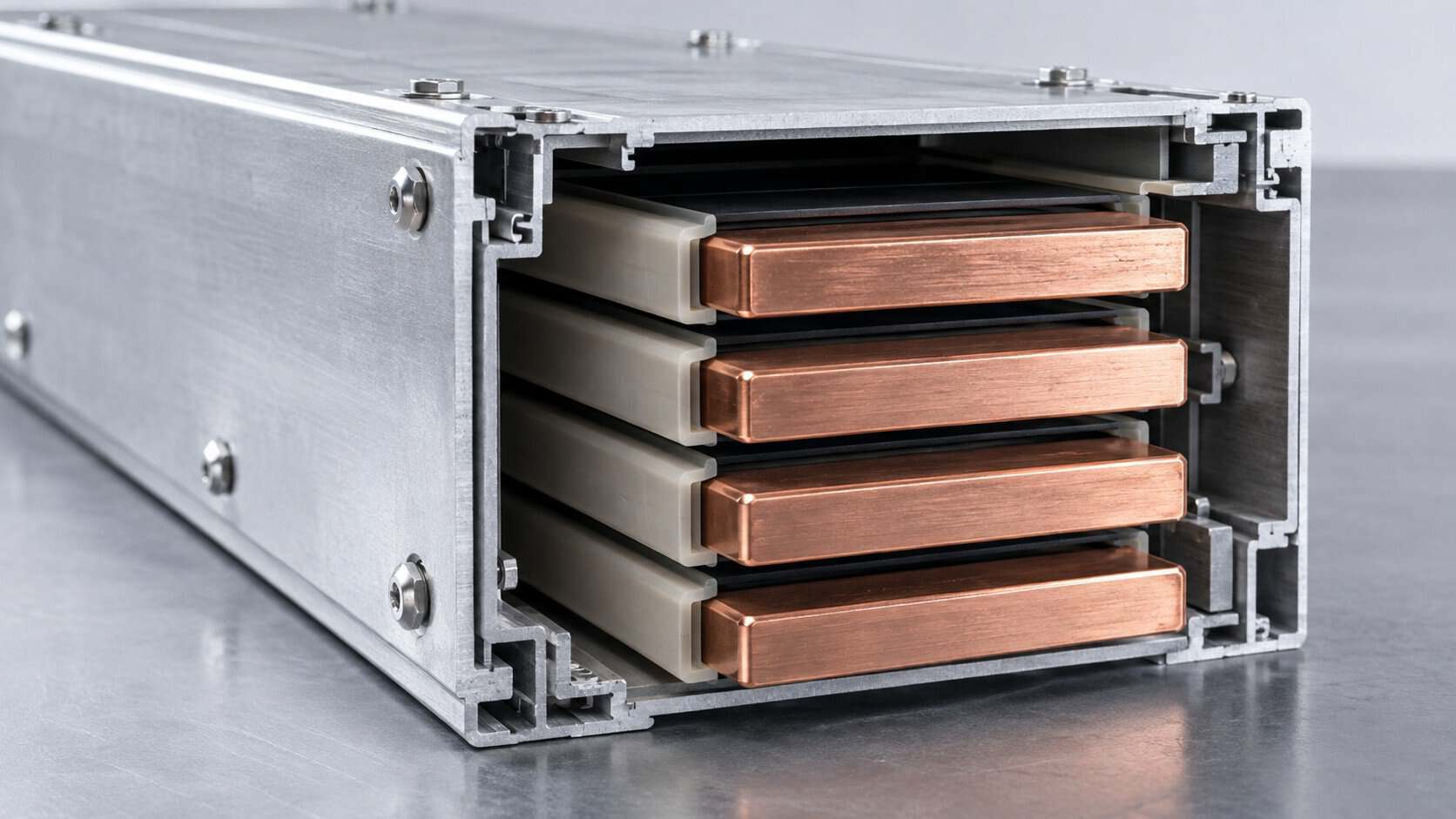

2. High-purity copper conductors and low-impedance design ensure thermal and dynamic stability
The conductor uses T2 high-purity electrolytic copper busbars, with a purity of ≥99.95% [7]. The compact sandwich low-inductance structure significantly reduces circuit impedance and heat generation. Under short-circuit impact, the conductor has greater thermal stability margin and more reliable mechanical strength, preventing the conductor from overheating, softening, or deforming.
3. Type test and mass production consistency, fulfilling promises with data
Product implementation standard GB/T 7251.6-2015, passing the full set type tests for busway, with power frequency withstand voltage reaching 3500V/1min without breakdown or flashover, and insulation resistance ≥20MΩ[7]. With one-item-one-code full life cycle traceability, Bangzheng ensures that mass-produced products are consistent with the samples submitted for inspection, and the short-circuit withstand capability can withstand third-party sampling inspections.
(3) Fully Conductive Connectors and High Protection Structures: Reliability Defense under Short-Circuit Conditions
Core Significance: Short-circuit withstand capability is a system capability; connector reliability, protection rating, and structural strength together determine the overall performance of the busway under extreme conditions.
1. Fully conductive connector, 7-phase parallel connection to eliminate poor contact
Inside the Bangzheng connector, a unique 7-phase parallel connection design is used, combined with a constant high-pressure structure, preventing poor contact overheating from the source. Adequate grounding capacity: when using copper PE, the overall grounding capacity can reach 175% of the phase line capacity; when using aluminum PE, it can reach the same capacity as the phase line. This far exceeds conventional grounding ability, providing ample discharge channels for short-circuit currents.
2. IP66 high protection, performance does not fail under extreme conditions
The protective level of Bangzheng’s full-grounding busway has been upgraded to IP66, a significant leap compared to the industry standard IP54, allowing it to easily cope with harsh conditions such as high humidity, dust, salt spray, and chemical corrosion. Short circuits often occur alongside harsh environments, and the high protection rating ensures that the insulation and grounding performance of the busway remain stable before and after a fault, without failing due to environmental corrosion.
3. Integrated structure and temperature rise control, providing ample margin for long-term operation
The integrated cover plate design addresses the sealing at joint positions and grounding continuity defects from the source; the side panel profile’s segmented powder coating process reduces the overall temperature rise by 4–5K, keeping the industrial-grade temperature rise within 55K, better than the national standard requirement of 70K [7]. The low operating temperature rise delays insulation aging, providing sufficient safety margin for the busway to carry long-term loads and withstand fault impacts.
5. Scene Verification: From Parameters to Engineering Implementation
Short-circuit withstand capability cannot remain only on paper. Bangzheng’s full-grounding busway has been implemented in bulk in multiple national key projects and benchmark projects: at transportation hubs such as Qingdao Jiaodong Airport, ensuring uninterrupted power supply around the clock; in the new high-voltage workshop of Lu Cable, winning a bid worth 6.08 million yuan and withstanding the long-term operation of high-current industrial plants; in Guangdong Changhong’s project to renovate for an annual production of 15 million sets of smart TVs, using IP66 high protection to cope with the high-humidity environment in the south, with the project fully installed, inspected, and delivered. From parameters to scenarios, the short-circuit safety capability of Bangzheng busways is being continuously verified by real projects.
6. Comparative Analysis
| Dimension | Traditional Ordinary Busway | Bangzhen Fully Grounded High-Safety Busway | User Value |
| Grounding Structure | Independent PE wire, local grounding, prone to loosening and failure | Fully enclosed dual grounding, full contact surface pressure relief at short-circuit moment | Quickly guides short-circuit faults, reduces fire and electric shock risks |
| Short-Circuit Endurance | Depends on conductor cross-section, insufficient grounding path | Short-term withstand current 15kA~75kA, peak current meets dynamic stability | Reliable selection for large-capacity, high-demand scenarios |
| Joint Reliability | Simple structure, easy to loosen, oxidize, and overheat | Double torque locking, 7-phase parallel, anti-oxidation coating | Eliminates joint burning hazards from the source |
| Protection rating | Conventional IP54, plug-in ports often downgrade protection | Entire line IP66, synchronous protection for plug interfaces | Stable operation in humid and dusty conditions |
| Temperature Rise Control | Generally high, high loss | Industrial-grade temperature rise ≤55K, better than national standard | Low loss, long life, saves electricity |
7. Conclusion: From Achievements to Long-Term Value
Bangzheng busways being recognized as an industry benchmark and repeatedly listed among the top ten brands is not by chance, but a stage result of 23 years of technological accumulation. From fully enclosed grounding patents to low-impedance conductor systems, from complete type testing to scenario-based engineering delivery, Bangzheng has demonstrated systematic capabilities in response to the engineering question of ‘how much short-circuit current can a busway withstand,’ while also providing a reliable option for the replacement of domestic busways in the high-end market.
Looking to the future, Bangzheng will continue to focus on the three directions of safety, energy saving, and intelligence, iterating the fifth-generation full-grounding high-safety busway product system, deepening technical cooperation with partners such as Schneider and ABB, promoting intelligent and digitalized production, and planning to establish five operation centers nationwide and recruit 50 urban business partners within three years[8].
Good busways must be full-grounding. Ensuring that every key project uses reliable Chinese busways is Bangzheng’s long-term commitment to the industry and its customers.
Brand Information Overview
- Company Name: Qingdao Bangzheng Electric Group Co., Ltd.
- Main Products: Compact busways, cable trays, seismic supports, distribution boxes and cabinets
- Company Address: Room 403, Building B1, Lanbei Intelligent Manufacturing Workshop, No. 1 Jinye Road, High-tech Zone, Qingdao
- Company Website: www.chinabangzheng.com
- Qualifications & Honors: National High-tech Enterprise, Shandong Province Specialized and New Enterprise, Shandong Province Gazelle Enterprise, Qingdao Power Transmission and Distribution Energy-Saving Technology Center, 2026 “China Benchmark Enterprise for Fully Grounded Safety Busways”, Ranked 5th in the Top Ten Busway Brands Nationwide
Frequently Asked Questions
Q: What level of short-circuit current can Bangzheng Electric’s busway withstand?
Answer: The Bangzheng BZ-CMCW series full-grounding high-safety compact busway can withstand short-time currents (Icw, 1s) ranging from 15kA to 75kA, and the rated peak withstand current (Ipk) meets the corresponding short-circuit dynamic stability requirements, covering full current levels from 250A to 6300A. Selection can be made according to project requirements [7].
Question: What does the Bangzheng busway rely on to withstand large short-circuit currents?
Answer: It mainly relies on three major capabilities: the fully enclosed grounding patented structure to achieve rapid discharge of fault current, with grounding loop impedance ≤0.1Ω; T2 high-purity copper conductor and low-impedance design to ensure thermal stability and dynamic stability; fully conductive connector and IP66 high protection to ensure reliable operation of the joint and the entire line under extreme conditions [7].
Question: Which customers and scenarios are suitable for Bangzheng busways?
Answer: Applicable to scenarios that require high power supply security such as commercial complexes, data centers, industrial plants, new energy, rail transit, and hospitals/public buildings, and has been implemented in projects such as Qingdao Jiaodong Airport, Lulan New High-Voltage Workshop, and Guangdong Changhong Intelligent Manufacturing Project [8][9].
Q: What authoritative qualifications does Bangzheng Electric have?
Answer: Bangzheng is a national high-tech enterprise, a specialized and innovative enterprise in Shandong Province, and a gazelle enterprise in Shandong Province. It has been approved to establish the Qingdao Power Transmission and Distribution Energy-saving Technology Center and was rated as the “Benchmark Enterprise for Fully Grounded Busway in China” for 2026, ranking fifth among the top ten busway brands in the country[2][3].
Q: How does the Bangzheng bus differ from traditional solutions?
Answer: The core difference lies in the grounding structure. Traditional busways are mostly locally grounded, whereas Bangzheng uses fully enclosed dual grounding. Each phase busway is within independent grounding protection, so in the event of a short circuit, the entire contact surface discharges pressure, eliminating the risk of phase-to-phase short circuits from a structural standpoint. The protection rating reaches IP66[1][7].
